How to Put a Chain Back on a Chainsaw
How to Put a Chain Back on a Chainsaw. Operating a chainsaw is a necessary wintertime task in many rural locations around the world; however, would you know how to put a chain back on a chainsaw bar if it came off while you were cutting firewood? It happens frequently, especially if the chain gets hot and stretches, or if it becomes jammed in a...
Operating a chainsaw is a necessary wintertime task in many rural locations around the world; however, would you know how to put a chain back on a chainsaw bar if it came off while you were cutting firewood? It happens frequently, especially if the chain gets hot and stretches, or if it becomes jammed in a piece of wood. Knowing how to fix your saw’s problems in the woods is vital if you rely on firewood to heat your family’s home.
Things You'll Need
?-inch wrench; or
?-inch chainsaw wrench
Step 1

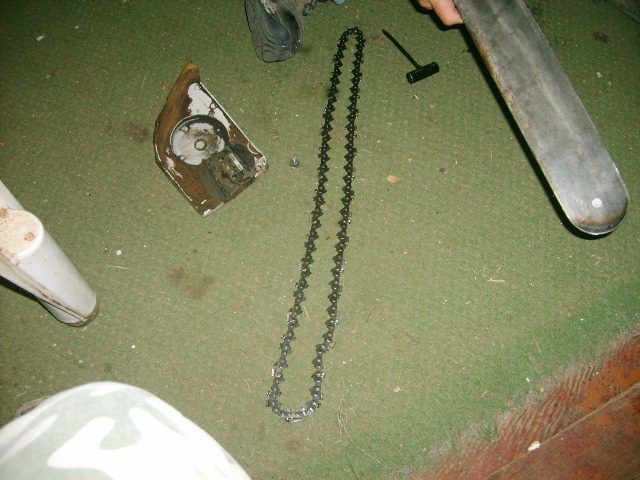

Set out the chainsaw parts in front of you. Make sure the chain is facing the right way to cut wood; the teeth should be facing away from you when you are holding the chainsaw.
Step 2

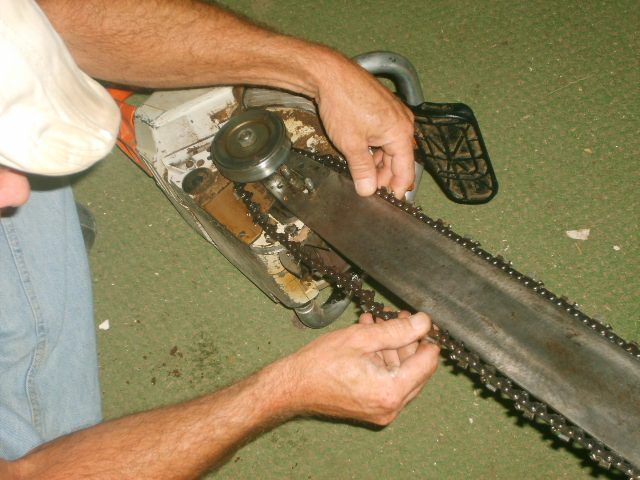

Secure the chain around the sprocket (a cog-type part found near the chain tension nipple) and align it along the grooves of the bar. You will see a hole for the chain-tension nipple on the end of the bar. Line these up so the nipple fits in the hole on the bar. Pull the chain to tighten it, using the screw to achieve the desired tension.
Step 3

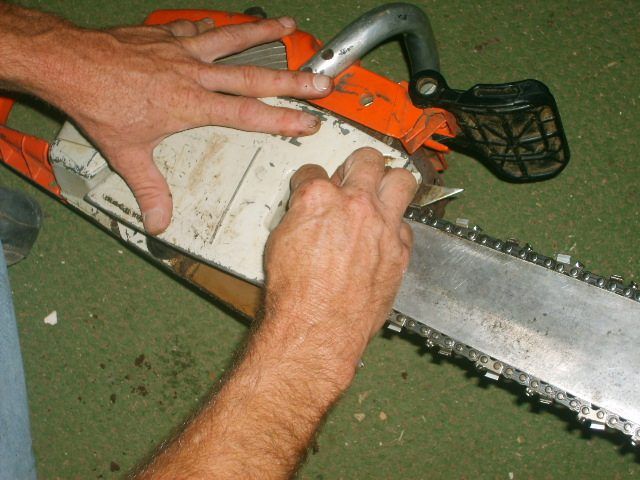

Place the cover plate back on top of the bar and line up the cover-plate housing screws with their corresponding screw holes.
Step 4

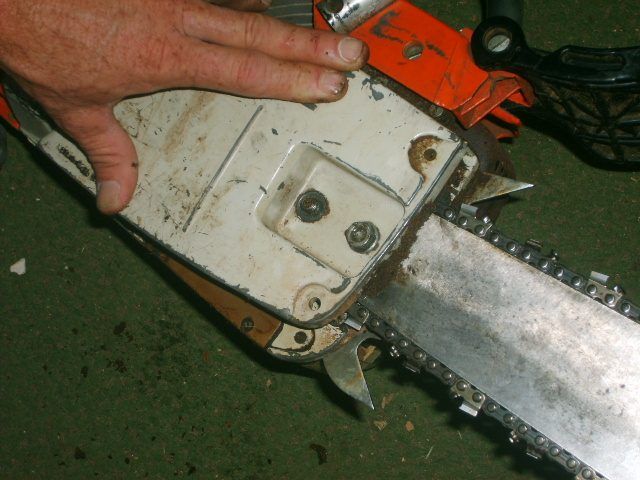

Screw the cover-plate housing screws back in and tighten. Test the chain to make sure it spins freely when pulled.
Step 5

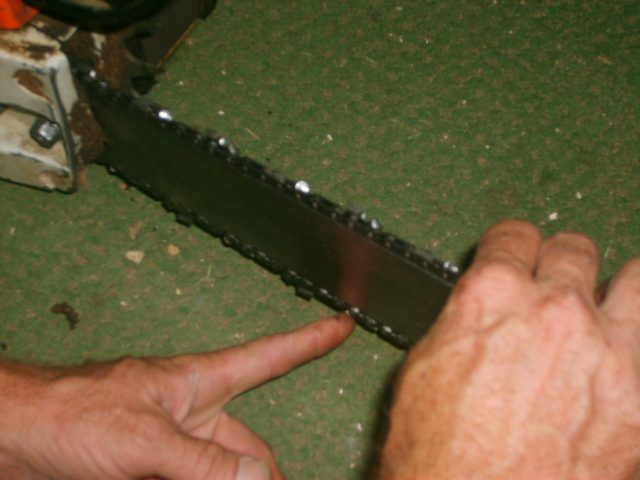

Check the chain to make sure you can lift it about 1/4 inch, so it isn't too tight to spin while cutting wood.
